Front Post Sight Removal on Mod 2
Posted 30 July 2014 - 12:45 PM
Posted 01 August 2014 - 09:13 AM
Posted 01 August 2014 - 09:49 AM
Whoops. Didn't see the title. My bad! You know how you have that catch on the side of the front sight post closest to the receiver? You need that. And a gas block.
Edited by Pyro_Buster, 01 August 2014 - 09:54 AM.
Posted 01 August 2014 - 12:44 PM
Posted 01 August 2014 - 01:09 PM
Posted 01 August 2014 - 01:20 PM
I would imagine it would be the same as whatever you have. For front end at least.
Posted 01 August 2014 - 03:04 PM
Posted 01 August 2014 - 03:08 PM
Posted 01 August 2014 - 03:09 PM
Posted 02 August 2014 - 06:22 PM
You'll need the hand guard end cap & delta ring, both came with your gun. The end cap will have to be moved forward about 3"
The rail you linked fits around the end cap & is secured with hex bolts, unlike the handrail that came with your mod that slides under the end cap so you can change the battery by pulling back the delta ring.
You can't do this with the rail you posted. It will need to be dissembled to remove the battery, if it fits?. The rail wasn't intended to house a battery. You checked the width, the battery has three dimensions: height & depth are going to be the issue.
Im guessing if you use that rail you will need to rewire the gun to the rear. Good time to upgrade to the metal lower receiver.
You can use your delta ring & hand guard end cap, its a tight fit over the EC, you will also need a gas block or front sight to hold the end cap in place.
If you want the free float system, the delta ring has to be replaced with a barrel nut as discussed here.
Posted 02 August 2014 - 07:13 PM
Posted 02 August 2014 - 09:00 PM
Posted 02 August 2014 - 10:37 PM
If you install a longer outer barrel and move the hand guard end cap forward 4" the gas block will hit the birdcage
You are installing a longer outer barrel?
If it was the mod1 I think the only way you can install a 12" rail is a free float system.
This could be a costly upgrade
Posted 03 August 2014 - 05:50 AM
Posted 03 August 2014 - 07:36 AM

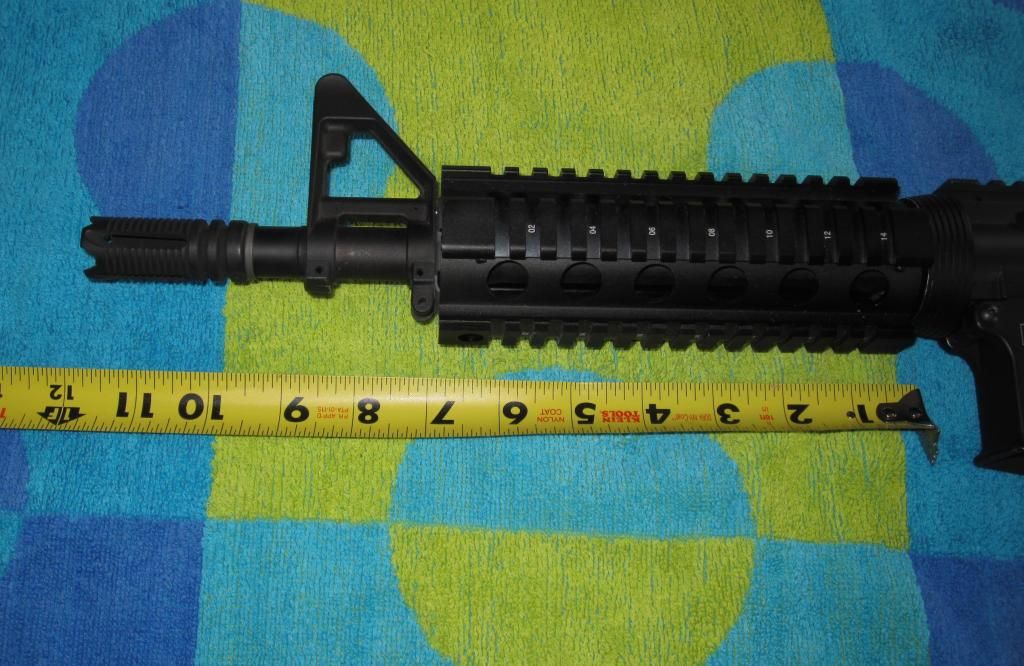

MOD2 with a 6.7" rail. It covers the end cap, the front sight holds it in place. The 12" mark is past the flash hider. A free float might work with a [barrel extension] or the SR12 outer barrel?
Posted 03 August 2014 - 08:22 PM
Alright well I actually just clicked on that link you posted Tales, then clicked on one of the suggest search options, "12" quad rail handguard" and come up with a bunch of options at $40. My question would be, how can I tell which of those rails are compatible with the delta ring I have now, if at all. And if none are, what would I need to do to make these rails work? Example would be this one: http://www.ebay.com/...=item33934070fe
Edited by StealthTaskForce, 03 August 2014 - 08:27 PM.
