#1 Roy Chan

Roy Chan

    Newbie

  • Members
  • Pip
  • 11 posts
  • Gender:Male
  • Country:

Posted 20 December 2013 - 05:29 PM

hey guys i need some help with my kwa cqr mod 2, i want to remove the orange flash hider. I REMOVED the hex screw but the thing is super glued on, what glue do they use. Also after im gonna put a [barrel extension] on so i need to know the threads on the kwa mod cqr 2 thanks.

#2 hellcat

hellcat

    Enthusiast

  • Members
  • PipPip
  • 133 posts
  • Gender:Male
  • Location:west palm beach florida
  • Interests:Airsoft, Football, Nascar, Guns, cars/trucks, and of women in yoga pants!!
  • Country:

Posted 20 December 2013 - 05:51 PM

Orange tip is held on with Thread locker and small set screw.  Threads are CCW (reverse). You will need to heat up tip with a heat gun to loosen the thread locker. Then unscrew to the right. 14mm CCW is the thread size.

#3 vanevery

vanevery

    Specialist

  • Members
  • PipPipPip
  • 981 posts
  • Gender:Male
  • Country:

Posted 20 December 2013 - 06:12 PM

Remove outer barrel first. Then heat the area. It will take a lot of heat. Even when ready to remove, it will still take a lot of force to turn the Flash Hider to break the thread locker bond. Use a wet washcloth and a wrench to remove. Remember, it is a Counter Clockwise thread. Righty/Loosy  -  Lefty / Tighty. Be patient. Don't break the Upper Receiver or Outer Barrel trying to remove the Flash Hider. Remember: lots of heat.

Edited by vanevery, 20 December 2013 - 06:13 PM.


#4 Chuck S

Chuck S

    Guru

  • Members
  • PipPipPipPip
  • 1,335 posts
  • Gender:Male
  • Location:Cleveland, Ohio
  • Country:

Posted 21 December 2013 - 04:22 AM

Some have reported that boiling water is hot enough to melt the LockTite.  A hair drier certainly is.  Too much heat should be avoided, I melted a KM4 compensator with a heat gun trying to burn the orange paint off it!  Not on the gun.  KWA sells an all black compensator but claims installing it voids the warranty...  :)  There are steel versions for about $5 which fit nicely and do not interfere with the inner barrel -- check this with any replacement muzzle device.

-- Chuck

#5 tales

tales

    Specialist

  • Members
  • PipPipPip
  • 557 posts
  • Gender:Male
  • Location:Brooklyn NY
  • Interests:Fishing, RC cars, Building Motion Picture sets
  • Country:

Posted 21 December 2013 - 08:43 PM

The flash hider has two flat spots for an adjustable/open end wrench. i removed he inner barrel, took off the stove burner grate placed the gun on a mappina with the flash hider over a low open flame, it came off in a minute I was next to the sink with running water


Disclaimer
IMO, mine wasn't coming off with a hairdryer. i DONT suggest this method!

#6 AFO Coyote: Truck

AFO Coyote: Truck

    Enthusiast

  • Members
  • PipPip
  • 35 posts
  • Gender:Male
  • Location:Fallbrook, CA
  • Country:

Posted 22 December 2013 - 10:38 AM

You could always use a pair of channel locks if you don't mind the flash hider getting scuffed up.

#7 tales

tales

    Specialist

  • Members
  • PipPipPip
  • 557 posts
  • Gender:Male
  • Location:Brooklyn NY
  • Interests:Fishing, RC cars, Building Motion Picture sets
  • Country:

Posted 22 December 2013 - 11:26 AM

View PostAFO Coyote: Truck, on 22 December 2013 - 10:38 AM, said:

You could always use a pair of channel locks if you don't mind the flash hider getting scuffed up.

Without liquifying the thread lock? i think that could cause damage to the outer barrel.

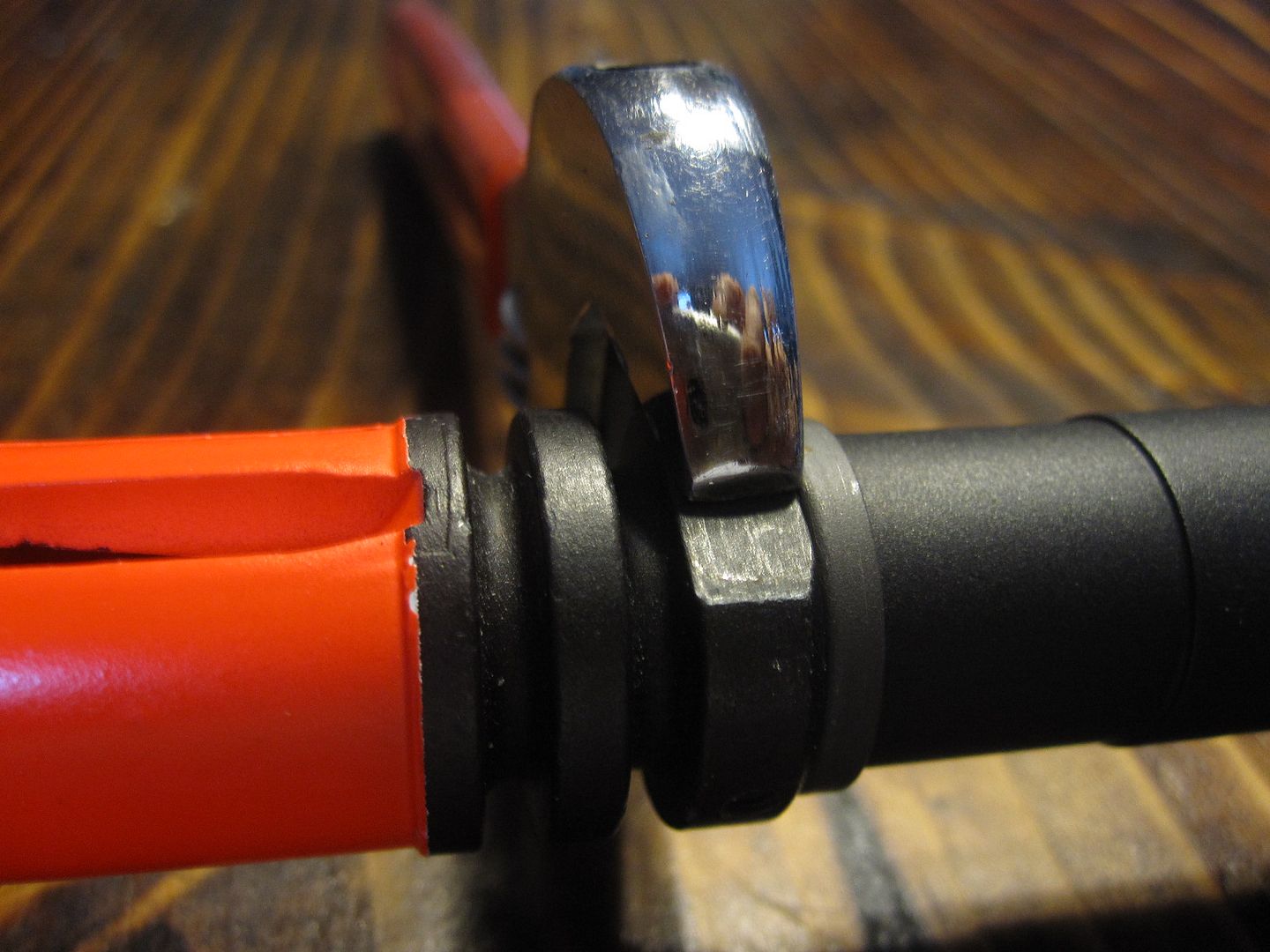

After the thread lock is heated a wrench fits the flash hider
Posted Image

If you don't have a wrench a ball driver through the flash hider also will work to unscrew it
Posted Image

#8 niko_gpsy

niko_gpsy

    What's a Warranty?

  • Super Moderator
  • PipPipPipPip
  • 5,884 posts
  • Gender:Male
  • Location:Atlanta, GA
  • Interests:Keeping those damn squirrels from putting their filthy little paws on my peaches in my backyard. Oh, Yes. It's not just a hobby, its a passion!!
  • Country:

Posted 24 December 2013 - 02:20 PM

Everyone's experiences when trying to remove the orange flash hider is different.  But since the orange flash hider is there due to federal regulations KWA can not discuss or give instructions on how to remove the orange flash hider on the company forums.  Unfortunately I have to close this thread.  Sorry.
