Will RM4 mags work in KM4?

RM4 KM4

  • Please log in to reply
14 replies to this topic

#1 Desert Punk

Desert Punk

    Enthusiast

  • Members
  • PipPip
  • 166 posts
  • Gender:Male
  • Location:utah
  • Country:

Posted 29 October 2013 - 01:20 AM

This may be a dumb question. Will RM4 mags work in a KM4?

Edited by Desert Punk, 29 October 2013 - 01:20 AM.


#2 Chuck S

Chuck S

    Guru

  • Members
  • PipPipPipPip
  • 1,315 posts
  • Gender:Male
  • Location:Cleveland, Ohio
  • Country:

Posted 29 October 2013 - 01:59 AM

No.  RM4 mags will NOT fit in the KM4.  Top of the magazine is different and prevents seating.

But KM4 (or other TM-pattern) magazines will work in the RM4 you just won't get the "bolt lock" when the magazine is empty.

-- Chuck

#3 Desert Punk

Desert Punk

    Enthusiast

  • Members
  • PipPip
  • 166 posts
  • Gender:Male
  • Location:utah
  • Country:

Posted 29 October 2013 - 05:38 PM

Then what modifications will it take to get the RM4 mags to fit the KM4 if possible.

#4 gcw360

gcw360

    Supreme Guru

  • Super Moderator
  • PipPipPipPip
  • 11,651 posts
  • Gender:Male
  • Location:New Jersey
  • Interests:Airsoft (Especially repair and customizing), Fly Fishing, Fossils (Especially Dino), Snakes, Photography
  • Country:

Posted 29 October 2013 - 05:50 PM

View PostDesert Punk, on 29 October 2013 - 05:38 PM, said:

Then what modifications will it take to get the RM4 mags to fit the KM4 if possible.
Not sure it's possible.  Just curious, why would you want to use them in a KM4?

#5 Desert Punk

Desert Punk

    Enthusiast

  • Members
  • PipPip
  • 166 posts
  • Gender:Male
  • Location:utah
  • Country:

Posted 29 October 2013 - 06:20 PM

To put it simply 30 round pmag that can feed all of the bbs.

Edited by Desert Punk, 29 October 2013 - 06:31 PM.


#6 Chuck S

Chuck S

    Guru

  • Members
  • PipPipPipPip
  • 1,315 posts
  • Gender:Male
  • Location:Cleveland, Ohio
  • Country:

Posted 30 October 2013 - 02:31 AM

The follower is the key item to feeding all the BBs and may fit.  I don't have enough RM4 magazines to disassemble one to look.

Let us know if it works!

-- Chuck

#7 gcw360

gcw360

    Supreme Guru

  • Super Moderator
  • PipPipPipPip
  • 11,651 posts
  • Gender:Male
  • Location:New Jersey
  • Interests:Airsoft (Especially repair and customizing), Fly Fishing, Fossils (Especially Dino), Snakes, Photography
  • Country:

Posted 30 October 2013 - 04:33 PM

I've thought briefly about this too. I suspect that a modified follower would get you complete feeding.  I'm sure there is a way to restrict the number of BBs also.  Let us know what you come up with.

#8 Desert Punk

Desert Punk

    Enthusiast

  • Members
  • PipPip
  • 166 posts
  • Gender:Male
  • Location:utah
  • Country:

Posted 30 October 2013 - 06:05 PM

I'll play around with some ideas. And let you know if I find one that works.

#9 Chuck S

Chuck S

    Guru

  • Members
  • PipPipPipPip
  • 1,315 posts
  • Gender:Male
  • Location:Cleveland, Ohio
  • Country:

Posted 31 October 2013 - 05:22 AM

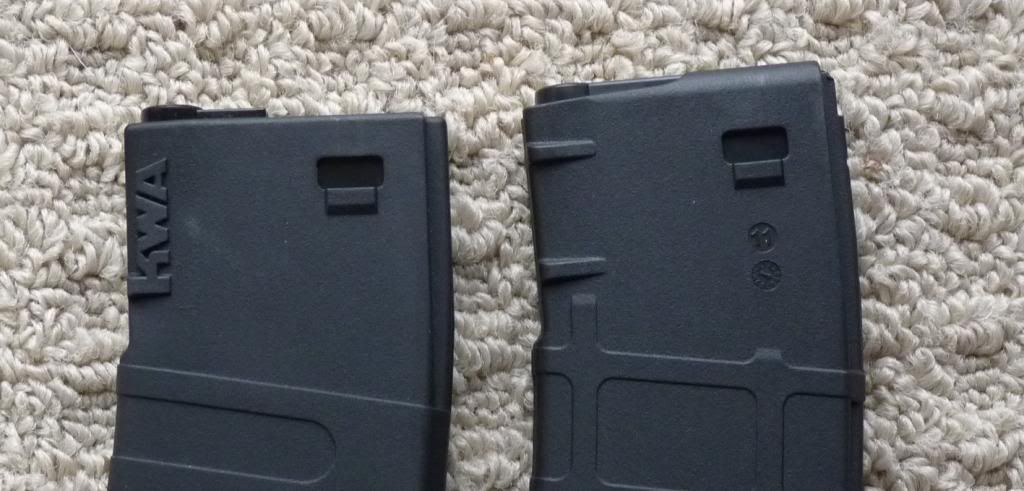

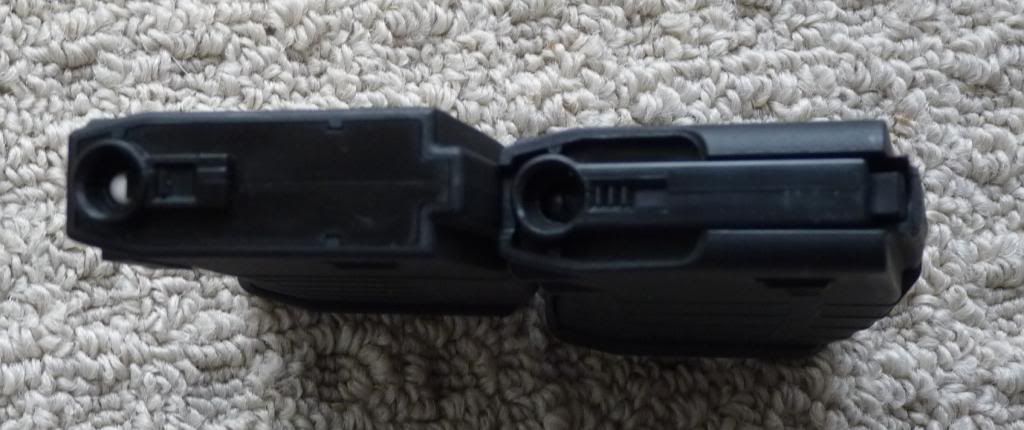

Here's a comparison of the top edge ("feed lips") of the KM4 (typical TM mag) and the RM4.  Note the extra area behind the BB feed lips on the RM4 magazine.  This prevents inserting it fully in a KM4 magazine well although the KM4 mag works fine in the RM4.  Call it backward compatibility.

KM4 (left).  RM4 (right).

Posted Image

Posted Image

-- Chuck

#10 Desert Punk

Desert Punk

    Enthusiast

  • Members
  • PipPip
  • 166 posts
  • Gender:Male
  • Location:utah
  • Country:

Posted 31 October 2013 - 09:58 PM

This is what I came up with. I used a 3/16in wooden dowel. And I drilled a small hole in center of the plastic part and dowel. Then I put a #18x5/8in nail in the drilled holes to add some support. You will need to cut the head of the nail of to make it work.  And sorry for the poor lighting in the pictures.

The follower after I finished it.
Posted Image

Measure from the lines in the picture below.
Posted Image

What it should look like in the mag.
Posted Image

Posted Image

And what it will look like in the KM4.
Posted Image

Edited by Desert Punk, 01 November 2013 - 02:28 PM.


#11 gcw360

gcw360

    Supreme Guru

  • Super Moderator
  • PipPipPipPip
  • 11,651 posts
  • Gender:Male
  • Location:New Jersey
  • Interests:Airsoft (Especially repair and customizing), Fly Fishing, Fossils (Especially Dino), Snakes, Photography
  • Country:

Posted 01 November 2013 - 04:51 AM

What did you start with?

#12 Desert Punk

Desert Punk

    Enthusiast

  • Members
  • PipPip
  • 166 posts
  • Gender:Male
  • Location:utah
  • Country:

Posted 01 November 2013 - 02:28 PM

Fixed it gcw360.

#13 gcw360

gcw360

    Supreme Guru

  • Super Moderator
  • PipPipPipPip
  • 11,651 posts
  • Gender:Male
  • Location:New Jersey
  • Interests:Airsoft (Especially repair and customizing), Fly Fishing, Fossils (Especially Dino), Snakes, Photography
  • Country:

Posted 01 November 2013 - 05:38 PM

View PostDesert Punk, on 31 October 2013 - 09:58 PM, said:

This is what I came up with. I used a 3/16in wooden dowel. And I drilled a small hole in center of the plastic part and dowel. Then I put a #18x5/8in nail in the drilled holes to add some support. You will need to cut the head of the nail of to make it work.  And sorry for the poor lighting in the pictures.

The follower after I finished it.
Posted Image

Measure from the lines in the picture below.
Posted Image

What it should look like in the mag.
Posted Image

Posted Image

And what it will look like in the KM4.
Posted Image
Very cool.  Now, you will need, IMO, another material to make this a long-term Mod.  You need to move from prototype to production.  What might work?  I have only a few ideas but a material that is more durable than a wooden dowel might be something to think about.  I don't know, do you think length of unjamming of might work?  Then again I could be full of crap.  See how long it last and then determin next steps.

#14 Desert Punk

Desert Punk

    Enthusiast

  • Members
  • PipPip
  • 166 posts
  • Gender:Male
  • Location:utah
  • Country:

Posted 01 November 2013 - 11:20 PM

I know the unjamming rod won't work it's to small. But you can get ABS and PVC round rod in the same sizes as wood dowels. All I had on hand where wood dowels but I plan to use ABS or PVC round rod.

#15 gcw360

gcw360

    Supreme Guru

  • Super Moderator
  • PipPipPipPip
  • 11,651 posts
  • Gender:Male
  • Location:New Jersey
  • Interests:Airsoft (Especially repair and customizing), Fly Fishing, Fossils (Especially Dino), Snakes, Photography
  • Country:

Posted 02 November 2013 - 06:06 AM

View PostDesert Punk, on 01 November 2013 - 11:20 PM, said:

I know the unjamming rod won't work it's to small. But you can get ABS and PVC round rod in the same sizes as wood dowels. All I had on hand where wood dowels but I plan to use ABS or PVC round rod.
Would like to see some made of the PVC or ABS.
