Pistol grip removal


  • Please log in to reply
8 replies to this topic

#1 mr.ying

mr.ying

    Enthusiast

  • Members
  • PipPip
  • 45 posts
  • Country:

Posted 01 September 2013 - 10:21 PM

Hey does anyone know if I am able to take off the pistol grip off the lm4 without removing the whole trigger assembly, since i am so lazy and hate to put back the full auto sear.

boobie here showed he took out everything


Thanks
Ying

#2 ky2970

ky2970

    Enthusiast

  • Members
  • PipPip
  • 182 posts
  • Country:

Posted 01 September 2013 - 10:27 PM

Yup, just unscrew it and you're good to go.

#3 BoobieM4H

BoobieM4H

    Guru

  • Members
  • PipPipPipPip
  • 1,048 posts
  • Gender:Male
  • Location:SAN JOSE, CA
  • Interests:IF IT USES GREEN GAS..I MAKE IT SHOOT BETTER!
  • Country:

Posted 01 September 2013 - 11:03 PM

Umm..this vid was to show how to remove/change the buffer stop..not remove the grip..

GBBGURU



#4 Chuck S

Chuck S

    Guru

  • Members
  • PipPipPipPip
  • 1,158 posts
  • Gender:Male
  • Location:Cleveland, Ohio
  • Country:

Posted 02 September 2013 - 03:38 AM

The LM4 nicely mimics the M4 Carbine.  Single screw up inside pistol grip is what secures it to the lower receiver.

BEWARE:  The selector spring and detent is under the grip of the 5.56mm version.  Been a year since I replaced my LM4 A2 pistol grip with my preferred A1 so I don't recall if it's there in the LM4.  But proceed with caution.  The spring will be visible as the grip starts off; the detent us up inside the receiver and will fall out and bounce into the Never-Find area of your desk!.

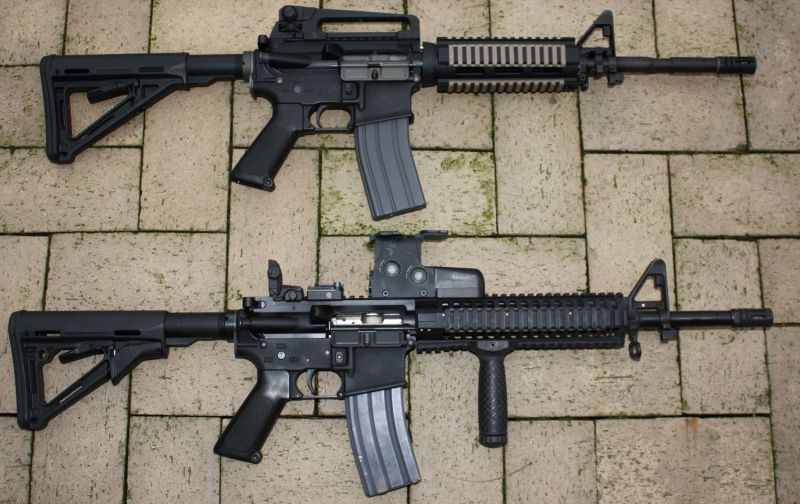

LM4 on top; LWRC M6A1 on bottom.  Both wear my preferred M16A1 pistol grip.  I really hate that finder thingie!

-- Chuck

Posted Image

#5 BoobieM4H

BoobieM4H

    Guru

  • Members
  • PipPipPipPip
  • 1,048 posts
  • Gender:Male
  • Location:SAN JOSE, CA
  • Interests:IF IT USES GREEN GAS..I MAKE IT SHOOT BETTER!
  • Country:

Posted 02 September 2013 - 05:47 AM

Fyi..no spring or pin in the lm4 version. Just unscrew and remove the grip..as "shown" in my vid lol

GBBGURU



#6 Chuck S

Chuck S

    Guru

  • Members
  • PipPipPipPip
  • 1,158 posts
  • Gender:Male
  • Location:Cleveland, Ohio
  • Country:

Posted 02 September 2013 - 09:37 AM

Good to know in the event I pull the pistol grip again.!

-- Chuck

#7 mr.ying

mr.ying

    Enthusiast

  • Members
  • PipPip
  • 45 posts
  • Country:

Posted 02 September 2013 - 06:52 PM

Thanks a lot guys!!

@boobie haha just used your vids as reference, cause that the only vid i know you took off the pistol grip, because u took out the pistol at the end i was wondering if i had to take out everything before i remove the pistol grip. But thanks a lot!! your vids are great!!

#8 BoobieM4H

BoobieM4H

    Guru

  • Members
  • PipPipPipPip
  • 1,048 posts
  • Gender:Male
  • Location:SAN JOSE, CA
  • Interests:IF IT USES GREEN GAS..I MAKE IT SHOOT BETTER!
  • Country:

Posted 02 September 2013 - 07:30 PM

View Postmr.ying, on 02 September 2013 - 06:52 PM, said:

Thanks a lot guys!!

@boobie haha just used your vids as reference, cause that the only vid i know you took off the pistol grip, because u took out the pistol at the end i was wondering if i had to take out everything before i remove the pistol grip. But thanks a lot!! your vids are great!!

Haha..for sure!

GBBGURU



#9 ky2970

ky2970

    Enthusiast

  • Members
  • PipPip
  • 182 posts
  • Country:

Posted 03 September 2013 - 01:19 AM

View PostChuck S, on 02 September 2013 - 03:38 AM, said:

The LM4 nicely mimics the M4 Carbine.  Single screw up inside pistol grip is what secures it to the lower receiver.

BEWARE:  The selector spring and detent is under the grip of the 5.56mm version.  Been a year since I replaced my LM4 A2 pistol grip with my preferred A1 so I don't recall if it's there in the LM4.  But proceed with caution.  The spring will be visible as the grip starts off; the detent us up inside the receiver and will fall out and bounce into the Never-Find area of your desk!.

LM4 on top; LWRC M6A1 on bottom.  Both wear my preferred M16A1 pistol grip.  I really hate that finder thingie!

-- Chuck

Posted Image

If I had a penny for everytime you put that picture up...
