Kwa m4 cqb gen .1 semi auto issues


  • Please log in to reply
6 replies to this topic

#1 jacob0174

jacob0174

    Newbie

  • Members
  • Pip
  • 11 posts
  • Gender:Male
  • Country:

Posted 01 April 2013 - 02:40 PM

so i just charged my lipo completely, and plugged it in to fire for the first time after taking the hopup apart with van guiding me. I put the hop back together,then plugged in the newly charged battery, which I had not charged prior to taking the hop apart, but used the small amount of charge in it. On semi, it fired full auto, but not consistently, like 2 or 5 rounds then stop, and the bbs dropped fast sooner than usual. I'm using a 1200 mah 15c lipo. It read 12v fresh out of the charger. Thanks

#2 vanevery

vanevery

    Specialist

  • Members
  • PipPipPip
  • 981 posts
  • Gender:Male
  • Country:

Posted 01 April 2013 - 03:22 PM

Ok.

Electrical:
- Did you do any work to the gearbox or has anyone else worked on your gearbox?
- Did you ever remove or replace the motor with an after market motor?
- Do you have a fuse installed?
- Make sure to fully charge the battery.
- Try a different battery and see what happens.
- Check the wires as you close the upper receiver to make sure they are not getting pinched somewhere.
- Typically, if it is firing Full-Auto on Semi-Auto setting, you have metal touching metal somewhere
   in  your electrical wiring. This could also be from arching in the Trigger Contacts.
- Make sure your Selector switch is locked into the Semi and Full-Auto positions before pulling the trigger.
- Make sure to fully compress the trigger. No half pulls

Hop-up:
- Make sure that the barrel window is centered with the Hop-up window.
- Make sure the Nub is seated correcrly.
- Test the function of the Hop-up unit by pressing on the Hop-up Arm to raise and lower the Nub.
   Make sure you see the Nub raise and lower the bucking mound as you press and release the
   Hop- up  Arm.
- Make Sure the inner barrel is fully inserted into the Hop-up unit all the way.

#3 jacob0174

jacob0174

    Newbie

  • Members
  • Pip
  • 11 posts
  • Gender:Male
  • Country:

Posted 01 April 2013 - 04:24 PM

on the hop up bucking seems to protrude VERY slightly when turned off completely, and i have a fuse, its a completely stock kwa- deans connectors, which worked prior to taking apart the hop up, and the barrels all the way in, and the hop up works. Some little wire came out of a rubber tube on the black connector on the gun, and i put it back, could that cause a problem?

Edited by jacob0174, 01 April 2013 - 04:27 PM.


#4 vanevery

vanevery

    Specialist

  • Members
  • PipPipPip
  • 981 posts
  • Gender:Male
  • Country:

Posted 01 April 2013 - 04:35 PM

Run thru the entire check list.
Then check back.

#5 jacob0174

jacob0174

    Newbie

  • Members
  • Pip
  • 11 posts
  • Gender:Male
  • Country:

Posted 03 April 2013 - 04:17 PM

Ok me and Van ran through the list, other than using a different battery, because so far the lipo's the only one I've switched to dean's. I have a feeling it may be the lipo causing the problem, but does anyone have any other suggestions?

#6 vanevery

vanevery

    Specialist

  • Members
  • PipPipPip
  • 981 posts
  • Gender:Male
  • Country:

Posted 04 April 2013 - 05:37 AM

You should pick up one of these parts and a new battery.
Yes is will be a few bucks out of your pocket, but that is just the way it goes sometimes.
This will give you a back-up plan so that your gun always works when you need it and an extra supply wire for future use. The Parts I list will cost you $35.00 plus shipping.
Not bad, if you ask me.



Part:
http://store.kwausa....supplywire.aspx
Posted Image

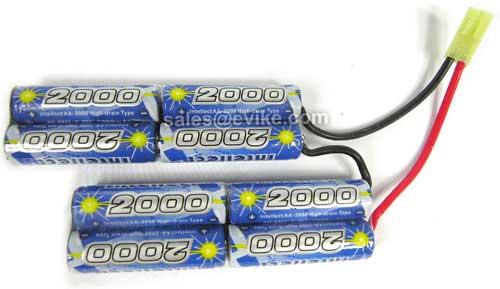

Battery:
http://www.evike.com...oducts_id=24484
Posted Image

Edited by vanevery, 04 April 2013 - 05:37 AM.


#7 jacob0174

jacob0174

    Newbie

  • Members
  • Pip
  • 11 posts
  • Gender:Male
  • Country:

Posted 15 September 2013 - 09:41 AM

So I know this forum is old, but I'll admit I gave up since the supply wire was out of stock. I decided to plug it in today, a year later, and it works great! My conclusion was that the battery was overcharged. The only question I have is that it will make a lounder noise, then a quieter noise, then a louder noise, and so on. Both shoot the same, has anyone else experienced this with a gen.1 cqb and a 11.1 lipo, or any gun?
